Registry helper class
Last updated
Last updated
Bridge developers notes

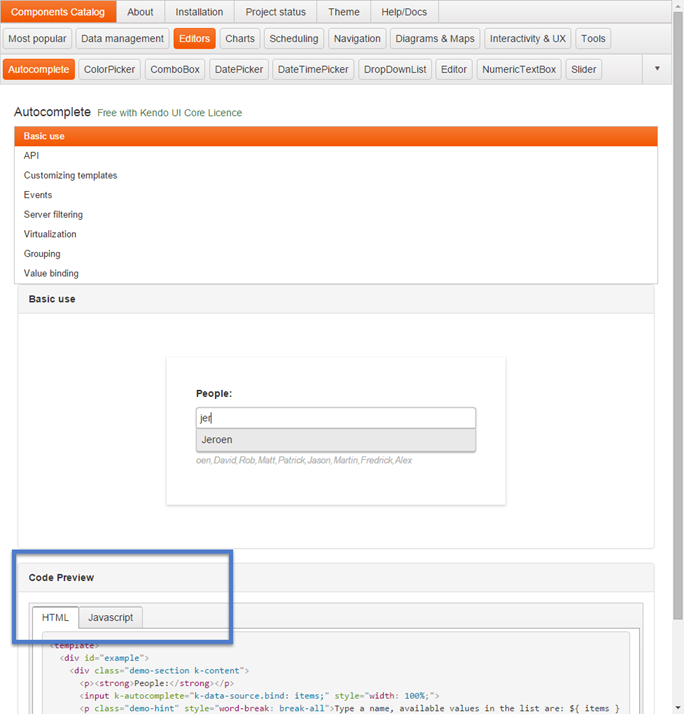

The registry.json file is used to short-cut the process of configuring showcase-area pages in the sample application by configuring the router, loading assets and setting up the Code Preview area that appears underneath the demo control itself (Image 1 below)
Image 1
The main application module configures the root router with the top level application areas. One of these areas is the samples
area which showcases each Kendo control.
Let's take the grid control for example:
- Each page in the grid sample is represented by some route configuration data which is passed to the child router and also by asset files (html/js/css).
- In the index
for each component, the registry.json
file is loaded and processed by the Registry
class.
- The index is very basic: it just imports the Registry
helper class and calls the load
method. This method configures the router and loads the assets.
- It takes two arguments - the router configuration object and the name of the component (as a string).
The helper uses the SystemJS loader to load the JSON file and subsequently the assets described within. It also applies some simple conventions to the data, building the route name, module Id, title etc.
Almost all of the configuration is convention based and will apply sensible defaults, but these defaults can be overridden: for example the title
property (that appears in the left-hand sub-navigation pane) either takes the value directly from the JSON or in the absence of any value, generates the title from the module name as per the following code snippet:
An important thing to note is that if no moduleId
property is passed in the JSON, the Registry
helper's conventions assume that it should load the sample-runner
module/view which is the standard demo layout as appears in the screenshot above.
However, if a moduleId
is passed it will override the default module. This allows a particular sample page to have a completely different layout if required.
Here is an example with added comments to explain each functional part of the JSON file:
The title of the sample area, shown at the top left of the page above the sub-navigation
An array of objects which represent each sample showcase page for a particular component
The "key" should represent the name of the sample sub-page. Each key at this level will be used as a route name and will generate a new sub-page.
Can be used to override the route name for this sub-page if required
Used to override the title that displays in the sub-page navigation area. This is useful as the default convention is to convert to a "Caps With Spaces" format which you may want to override (for example, api becomes Api when you would more likely want API in the sub-nav)
Used to override the module that will be loaded when this sub-page is navigated to. This might be used, for example, if a particularly "special" control requires a flashy showcase page that has a different layout/viewmodel/features than the standard showcase page
Specifies whether the sub-page appears in the sub-navigation pane or not. Default is "true" (visible)
An array of file extensions that represent assets to load for this particular showcase page. The conventions dictate that any asset files should share the same name (i.e. the "key") and be identified/loaded by the "key" + the extension.
For example:
Will load basic-use.html
, basic-use.js
and basic-use.css
and also display these three files in the code preview window at the bottom of the showcase page.
